Technical Advantages

Product Types

Mainly engaged in plating series of precision hardware, connectors, medical equipment, new energy, aerospace and military industries;

High level  deep hole plating of electronic and medical connector products.  POGP PIN Deep Blind Via Hole (1:10) ,Deep Plating Through Hole (1:50), Slender Through Hole OD < 0.5, diameter to depth ratio (1:30),100 % Plating coverage.

Precise probe products: 0.1mm~0.5mm in diameter IC needle through hole, Plunger, turnings and other coatings are excellent.The thickness of gold plating can reach 4-5um, stable and reliable.

For aerospace and military connector products, the gold plating thickness is 1-2um, and the strong bonding force is stable and efficient.

Electroplating for various types of materials
Mature electroplating technology of SUS series stainless steel/stainless iron/all kinds of copper/Nd-Fe-B strong magnetic materials.

Reliability Testing Advantages

Multiple types of material electroplating

Artificial Sweat: Up to 600 minutes

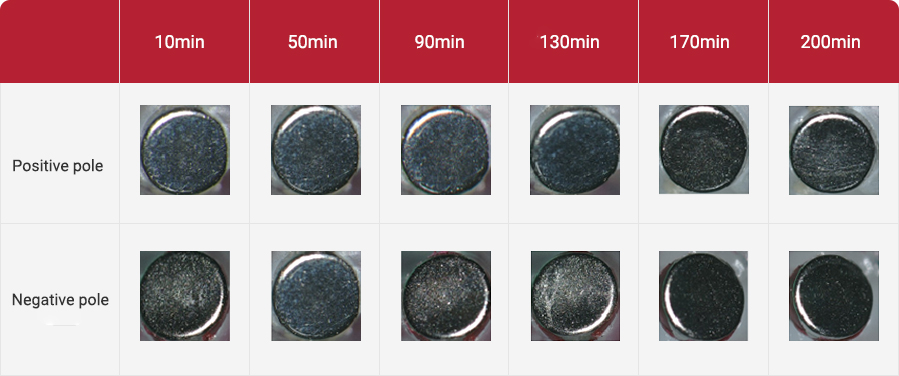

Electrolysis test (including regard product as positive pole): 20-200 minutes



Plating Advantages


Variety of plating layers: gold, silver, nickel, palladium, copper, platinum, palladium nickel, copper tin zinc, ruthenium, rhodium, rhodium ruthenium, platinum ruthenium, palladium cobalt, gun cobalt, tin, zinc nickel, nickel tungsten, silver tungsten, composite Plating

The Composite plating can reach up to 10 layers, which can meet the plating requirements of various functions.


Intimal membrane thickness:the inner membrane thickness of the hole can reach 80% of the outside of the tube.

Deep plating of gold-plated blind hole: 100% coverage of each plating layer in product holes with a hole depth ratio of 1:10.


The thickness of the platinglayer is large and uniform,the structure is fine,the adhesion is strong,the color is bright.

Thick gold plating: plating up to 4-5μm.

Palladium coating can reach 2-3μm without cracks.

Palladium nickel coating up to 2-3μm without cracks.

Platinum coating can reach 1-2μm.


Technical Team With Excellent R&D Ability

Continuously provide mature and diversified plating solutions


弘裕研发团队
电镀解决方案
镀层检测

Professional Plating Team

A team of plating engineers with 20 years + industry experience to manufacture more consistent and high-quality products.

电镀加工
滚镀加工
东莞电镀厂
滚镀金加工

Learn more about products and services
Please contact us
